Category

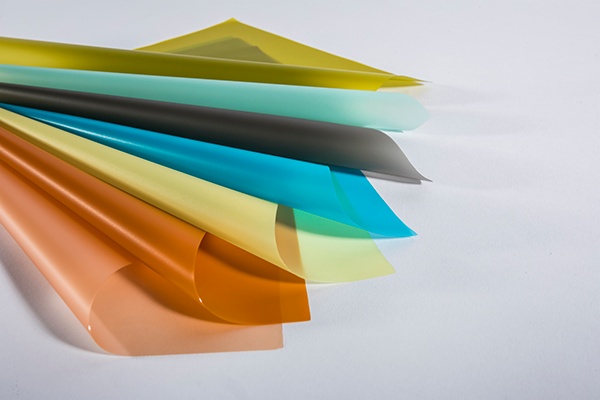

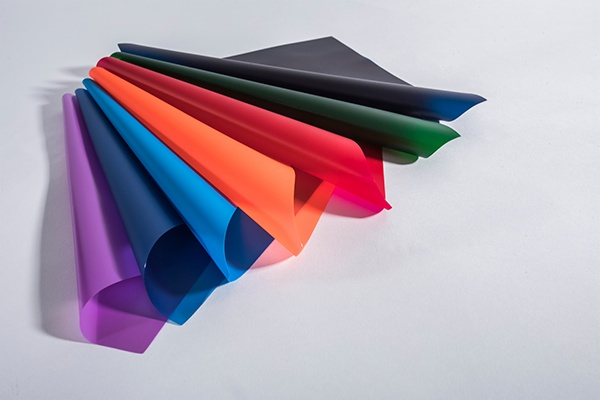

TPU Waterproof Film

• Good Tensile Strength
• Garments
• Good Wear Resistance
• Inflatable Products
• Good Air Tightness
• Fabric Lamination
• Good Oil Resistance
• Outdoor sports products

Inquiry
  • BASIC PHYCIAL PERFORMANCE

ITEM:XGD01585-ZH（0.15MM*1370MM）



                    TEST ITEM                    TEST METHOD                    UNIT                    TEST VALUE
                    Hardness                    ISO 686                    shoreA                    85±2
                    Specific Gravity                    ISO 2781                    g/cm³                    1.2±0.02
                    Thickness
Colour		                    Thickness gauge mm
Visual inspection		                    mm                    0.15
foggy
                    Tensile Strength                    ISO 527-3/5/500                    MPa                    CD43.01
MD41.81
                    Tensile Strength @ 50%
Elongation		                    ISO 527-3/5/500                    MPa                    CD5.44
MD5.87
                    Tensile Strength @
Elongation		                    ISO 527-3/5/500                    MPa                    CD7.70
MD7.38
                    Tensile Strength @ 300%
Elongation		                    ISO 527-3/5/500                    MPa                    CD10.93
MD9.94
                    Elongation at
Break		                    ISO 527-3/5/500                    %                    CD794.767
MD759.414
                    Tear Strength                    ASTM D1004                    kg/cm                    CD125.02
MD116.00
                    Abrasion Resistance                    ISO 4649                    mm³                    39
                    Vicat Softening
Point		                    ISO 306                    ℃                    85-90℃



Product Information:


TPU Film have simple molecular structure ( including only C.H.O.N ), TPU doesn't pollute the air while burning and incinerating and will be degraded naturally within 3~5 years under the action of humidity and microorganism after being buried in soil, so it is a good substitute of PVC products and a main-stream product for environmental production.


- Highly elastic, wear-resistant,
- Anti-yellowing, weather-proof, oil-resistant, acid-proof, warping-resistant,
- Anti-fungus, antibiosis, anti-static, recyclable and degradable
- Safe and durable even in severe environment
- Environment friendly
- Good hydrolysis resistance and weather fastness.
- No affected by oil, chlorine, sweat, cosmetic and seawater
- Smooth surface is advantageous to screen printing
- No losing elasticity in cold or hot environment
- Smoothly rounded edge keep your skin from irritation


Width :  20-1700 mm
Thickness :  0.012-2.0 mm
Color :  Foggy , Clear , Any color can be customized
Hardness :  80A ,85A ,90A ,95A
Anti-UV Grade :  Grade 4
Melt Point :  135-175 ℃
Gravity : (g/cm3)  1.11-1.21
