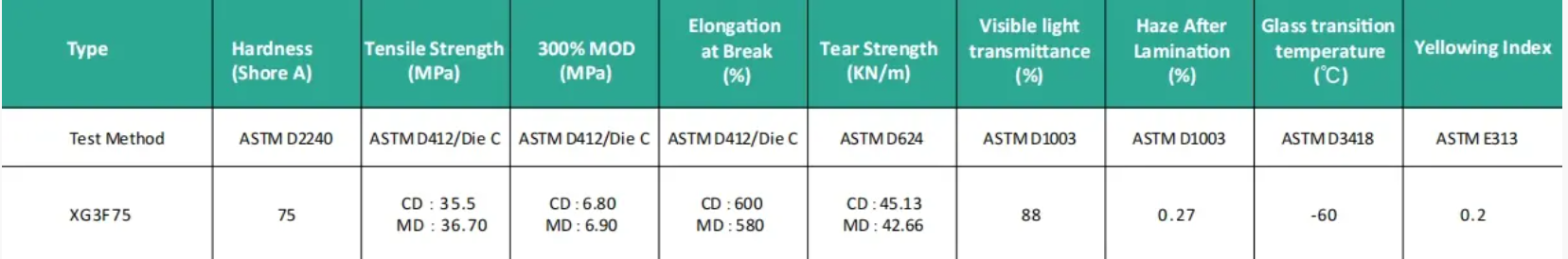

  • BASIC PHYCIAL PERFORMANCE

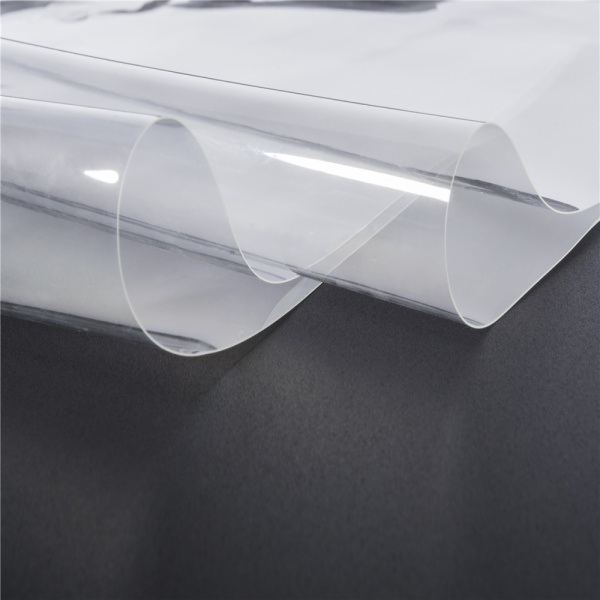

Optical Aliphatic Polyether TPU Film

Interlayer – XG3F75 For Glass lamination


General Descripition:

Excellent clarity

Super UV resistance,non yellowing

Excellent low temperature flexibility

No plasticizer, no attack to PC sheet

Excellent adhersion to PC/PET and glass as well

No bubbles between substrates during lamination
No senstive to water and other chemical so no need for edge seal

Width Option:

1016mm, 1524mm, 1800mm

Thickness Option:

0.015 ”  (0.38mm)

0.025″  (0.635 mm)

0.030″  (0.76 mm)

0.050″  (1.27 mm)

0.075″  (1.91mm)

下载 (1).png

– Storage: Keep film in a clean area, away from excessive moisture and out of direct sunlight. Store rolls undernormal conditions of 16 to 27°C and 40 to 60% R.H. in the original package.

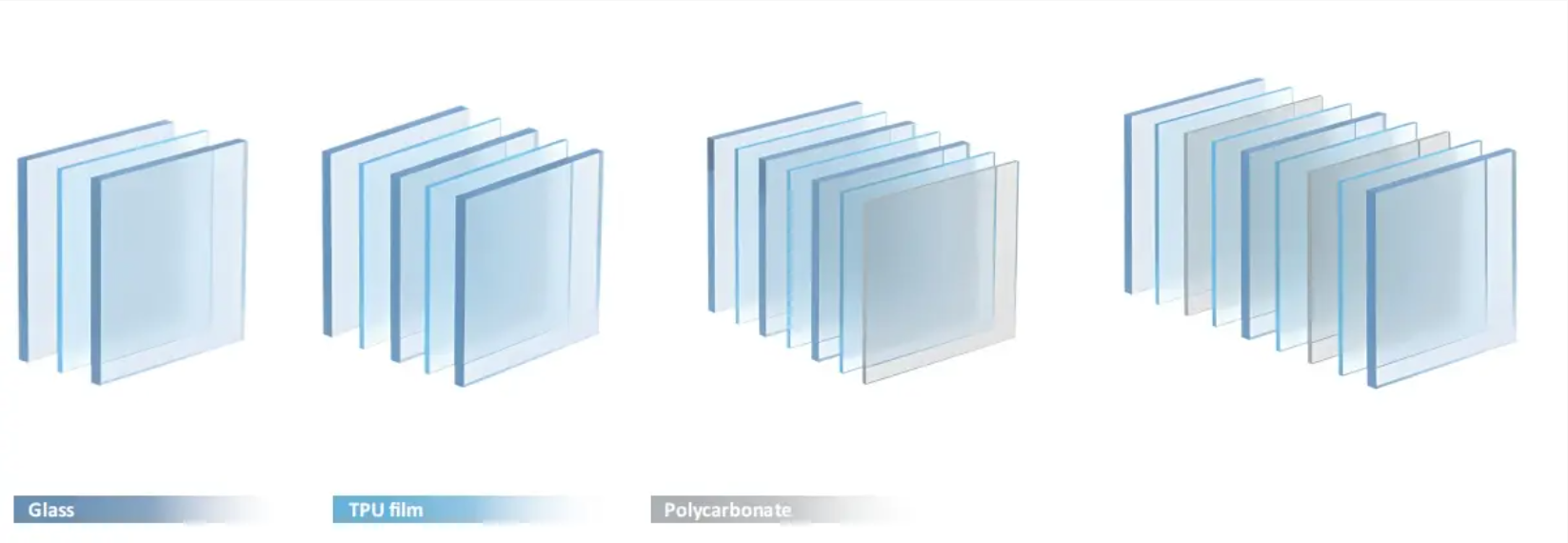

Glass Laminate Designs & Structures:

下载 (2).png

TPU Interlayer film – Application:
Building Glass, Bank Counter Glass, Glass Guardrail, Soundproof Glass, Glass Walkway, Aerospace, RailwaySafety Glass,Armored Vehicle Bulletproof Glass


下载 (3).png

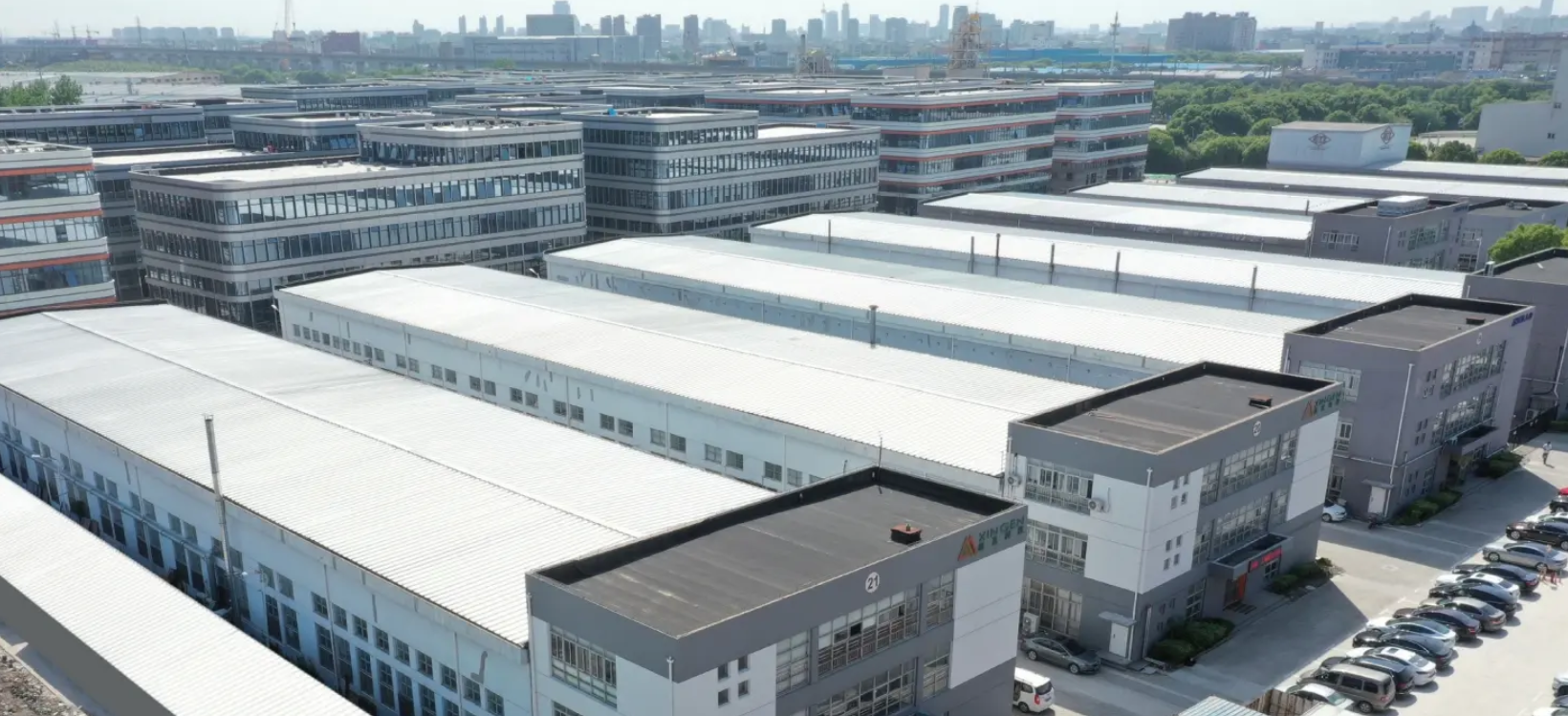

Company Introduction

Xin Gen was founded in 2009 which head office and R&D deparment located in Shanghai,China,covering an area of over 6000 square meters.
In 2023, we established branches office in Shenzhen annd Los Angeles, USA. Our main products are TPU film, TPU Lamination fabric, TPU PPF.
Our factory has passed the certification of ISO 9001 and the IATF16949 in the automotive industryquality system,there are research and development centers and prodiuct laboratories in the factory to ensure the excellent quality of our products.
